Images

Electronics: planar - flexible - three-dimensional
With NEXTRA® electronics does not have to obey limits of current technologies any more.

These images view some designs which have been created using NEXTRA® or have been imported from existing 2D-PCB designs into NEXTRA®. Unlike other 3D PCB views from existing visualization packages these designs are fully editable within NEXTRA®!


Icezum Alhambra

Icezum Alhambra

This is an Arduino compatoble open source hardware board. See more on this board here.

The authoring system for this board is Altium Designer.

Toradex Apalis

Toradex Apalis

This is the Apalis Evaluation board from Toradex. Here you can get more information about that board.

The system used to design this board is Altium Designer.

Texas Instruments TIDA-01168

Texas Instruments TIDA-01168

This is the Texas Instruments bidirectional DC-DC converter reference design for 12-V/48-V automotive system. You can get more information about this board here.

Intel Arduino 101 Board Intel Arduino 101 Board

This is an image of the Intel Arduino 101 board. The board layout data has been imported from an Allegro file and the image has been created by the Nextra internal rendering module.



Source: Intel / Allegro

Nvidia Jetson TX1 Main Board Nvidia Jetson TX1 Main Board

This is the image of the Nvidia Jetson TX1 main board only. The board layout data has been imported from an Allegro file and the image has been created by the Nextra internal rendering module.



Source: Nvidia / Allegro

FlowCAD Evaluation Design
FlowCAD Evalution Design for a Camera Application

This is the image of a board from our distributor FlowCAD of an evaluation design for a camera application. The board layout data has been imported from an Allegro file into Nextra and the image was created by the rendering engine within Nextra.

Source: FlowCAD / Allegro

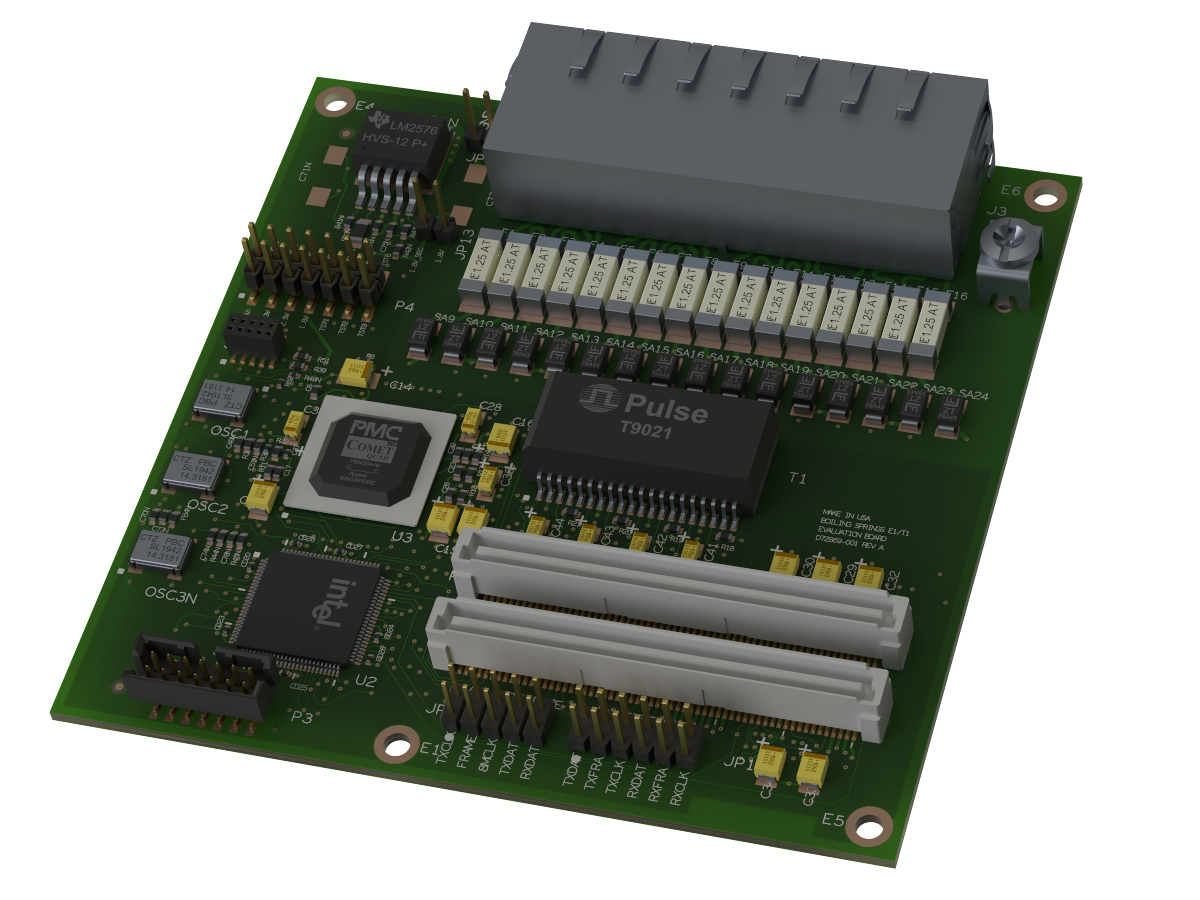

Intel EPTEM 80579 Board

Intel EPTEM 80579 Board

This is an image of the Intel EPTEM 80579 board. The board layout data has been imported from an Allegro board file and the image has been created by the Nextra internal rendering engine.



Source: Intel / Allegro

Bent Flexible Circuit Board Bent Flexible Circuit Board (Source: NEXTRA®)
A bent flexible circuit board which implements a liquid sensor. To improve the design process NEXTRA® enables to hide individual surfaces of the bent flex board.

Source: Mecadtron / NEXTRA®
Molded Interconnect Device Molded Interconnect Device (Source: NEXTRA®)
A three-dimensional molded carrier (MID, Molded Interconnect Device). It implements an ignitor of an airbag control.

Source: Mecadtron / NEXTRA®
Molded Interconnect Device Molded Interconnect Device (Source: NEXTRA®)
A further three-dimensional carrier (MID, Molded Interconnect Device). It implements a thermometer.

Source: Mecadtron / NEXTRA®
